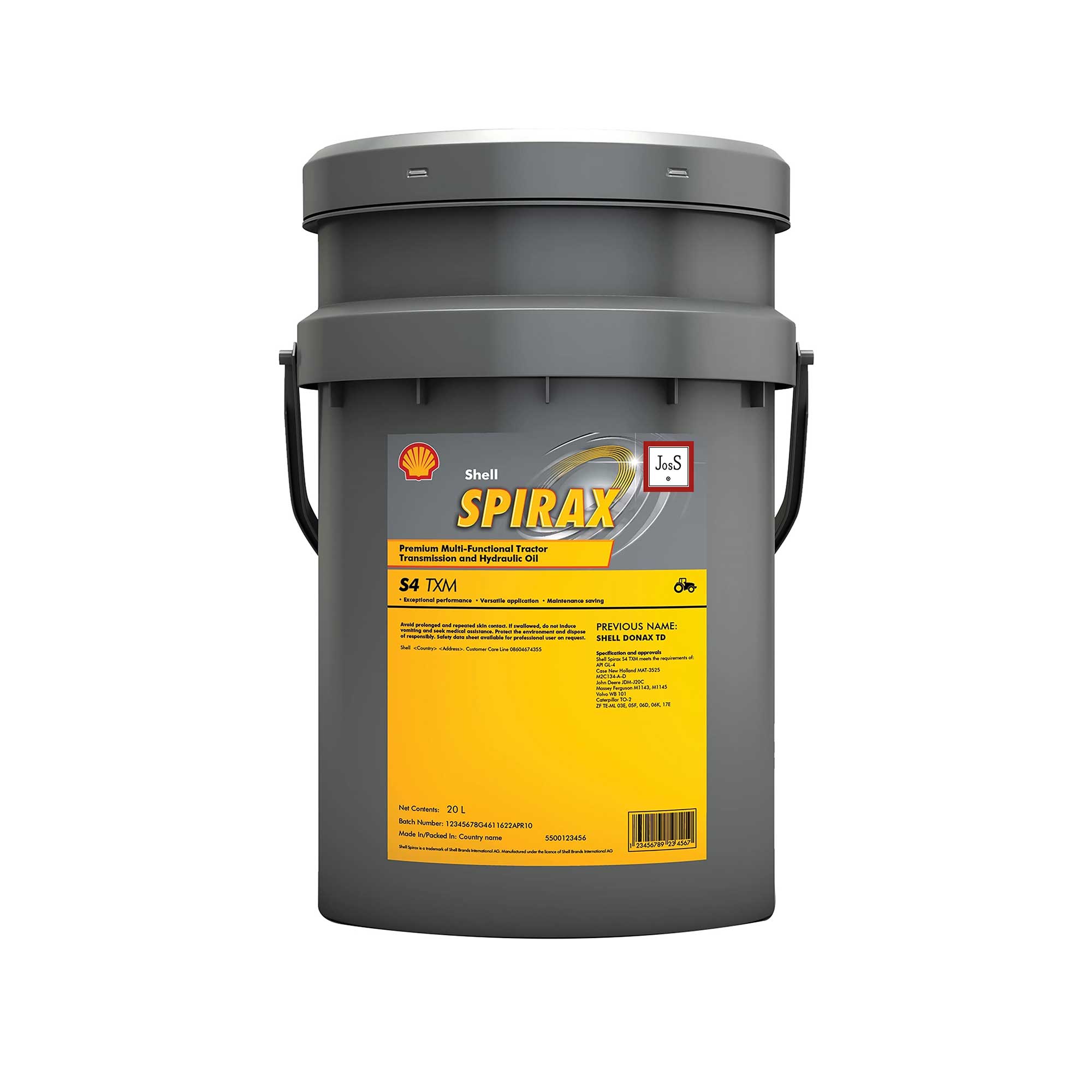

Shell Spirax S4 TXM

Application:

Shell Spirax S4 TXM is a high-performance “universal tractor transmission oil” (UTTO) formulated to deliver superior protection and smooth operation in modern agricultural and off-highway machinery. It is suitable for use in transmissions, hydraulic systems, oil-immersed brakes, and power take-off (PTO) systems. Previously known as Shell Donax TD, Spirax S4 TXM is trusted and approved by a wide range of original equipment manufacturers (OEMs).

Performance Features & Benefits:

• Enhanced Component Protection: Excellent anti-wear, anti-corrosion, anti-foam, and oxidation stability ensure longer equipment life and reliability.
• Smooth Brake Operation: Special friction modifiers support quiet, effective wet brake performance—even in systems with sintered bronze or graphitic linings.
• Excellent Cold-Weather Performance: Maintains hydraulic responsiveness and gear-shifting smoothness from cold starts to full operating temperatures.
• Multi-Functional Use: A single oil solution for multiple systems (transmission, hydraulics, brakes, PTO), reducing maintenance complexity.
• OEM-Approved: Validated and recommended by leading manufacturers such as John Deere, CNH, Massey Ferguson, ZF, Komatsu, and more.

Main Application Areas:

• Agricultural tractors with shared fluid systems
• Off-highway construction and industrial equipment
• Wet brake systems where noise reduction is desired
• Hydraulic systems operating in a wide range of temperatures

Specifications & Approvals:

• API GL-4
• John Deere JDM J20C
• Case New Holland MAT 3525
• Massey Ferguson M1145
• Volvo WB 101 / Transmission Oil 97303:015
• ZF TE-ML 03E, 03L, 05F, 06D, 06K, 06M, 06N, 06R, 17E, 21F
• DANA-OHTM-UTTO: 20A-0001
• Komatsu – recommended for use in selected equipment
• Suitable for use in applications requiring Allison C-4
• Can replace SAE J306 80W UTTO applications
• Obsolete (USA): Caterpillar TO-2, MF M1143, Ford M2C-134 A-D, FNHA-2-C.201.00
• Also recommended for: Case MS 1207, MS 1209, MS 1210

Usage Instructions:

• Use only as directed. Not suitable for use as engine oil.
• Consult your OEM manual or Shell representative for application-specific advice.

Environmental & Safety Information:

• Shell Spirax S4 TXM is not expected to pose significant health or safety hazards when used properly.
• Avoid contact with used oil. Use gloves and wash thoroughly after contact.
• Do not discharge oil into drains, soil, or water. Return to an authorised collection point.
• Safety Data Sheet (SDS) available via inquiry.

Technical Specifications:
