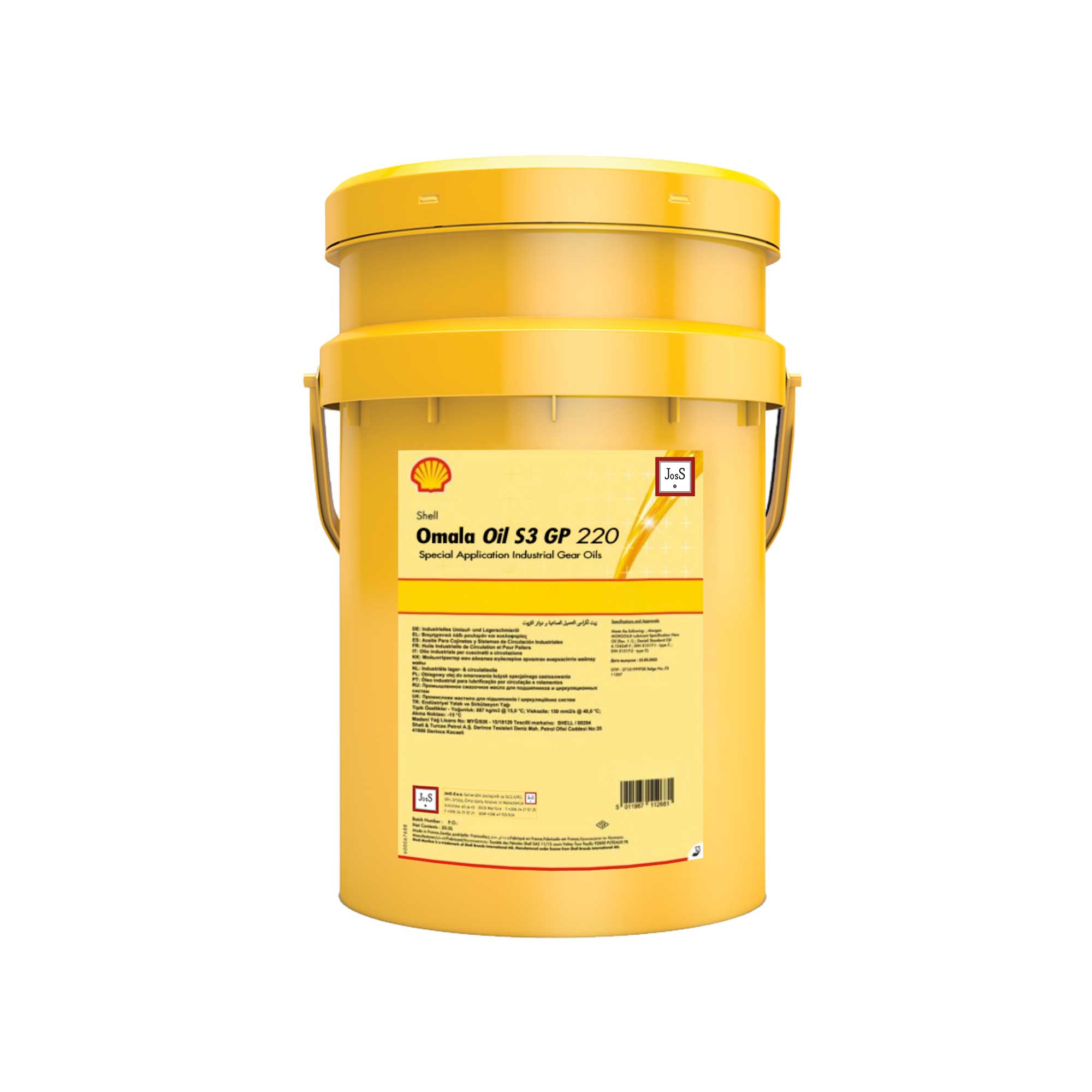

Shell Omala S3 GP 220

Old product name: Shell Gear Oil SI, Shell Omala SW

Shell Omala S3 GP 220 is a specialist industrial gear oil designed for highly loaded and shock-loaded gear systems, offering superior EP performance, long oil life, and enhanced protection for worn or misaligned gears.

Category:

Shell Omala S3 GP 220

( Previously named: Shell Gear Oil SI, Shell Omala SW )

Special application gear oil for extreme shock loads and damaged gear systems

  • Designed for use in enclosed industrial gearboxes under severe and shock-loaded conditions

  • High levels of EP and anti-wear additives for superior gear and bearing protection

  • Excellent resistance to thermal and chemical breakdown up to 100 °C

  • Prevents sludge formation and extends oil life

  • Strong corrosion protection, even with water and solid contamination

  • Effective water separation to maintain lubrication integrity

  • Suitable for worn or misaligned gear systems

  • Formerly known as Shell Gear Oil SI and Shell Omala SW

Global Product Code: 001D7845



Application:

Shell Omala S3 GP 220 is a high-performance industrial gear oil formulated for specialized use in severely loaded and shock-loaded gearboxes found in industries such as steel, cement, mining, and quarrying. It provides enhanced protection for both standard and worn gear systems. Former product names include Shell Gear Oil SI and Shell Omala SW.

Performance Features & Benefits:

  • Long Oil Life: Resists thermal and oxidative degradation, helping to prevent sludge formation and maintain performance up to 100 °C.
  • Superior Wear & Corrosion Protection: High EP additive levels provide optimal protection in the most demanding conditions, including systems with water and solid contaminants.
  • Maintains System Efficiency: Excellent water separation extends gear life by preserving oil film integrity.

Main Application Areas:

  • Highly loaded enclosed industrial gear systems with shock loads
  • Older, worn, or misaligned gear systems requiring enhanced protection
  • Bearings and other components in splash or circulating systems
  • Not suitable for automotive hypoid gears—use Shell Spirax instead

Specifications & Approvals:

  • Textron Power Transmission (David Brown) S1.53.101E (except ISO 680 and 1500)
  • ISO 12925-1 CKD (except ISO 680 and 1500)
  • ANSI/AGMA 9005-E02 (EP)
  • Van de Wiele approval

Environmental & Safety Information:

  • Follow guidelines on the Safety Data Sheet (SDS) for proper handling.
  • Use appropriate protective equipment when handling used oil.
  • Do not discharge oil into drains, soil, or water; return to an authorized collection point.
  • Safety Data Sheet (SDS) available via inquiry

Technical Specifications:

Property Typical Value Method
ISO Viscosity Grade 220 ISO 3448
Kinematic Viscosity @ 40°C 220 mm²/s ISO 3104
Kinematic Viscosity @ 100°C 19.9 mm²/s ISO 3104
Viscosity Index 104 ISO 2909
Density @ 15°C 893 kg/m³ ISO 12185
Flash Point (COC) 237 °C ISO 2592
Pour Point -18 °C ISO 3016
FZG Load Stage >12 FZG A/16.6/90
Four Ball Weld Load 500 kg DIN 51350
