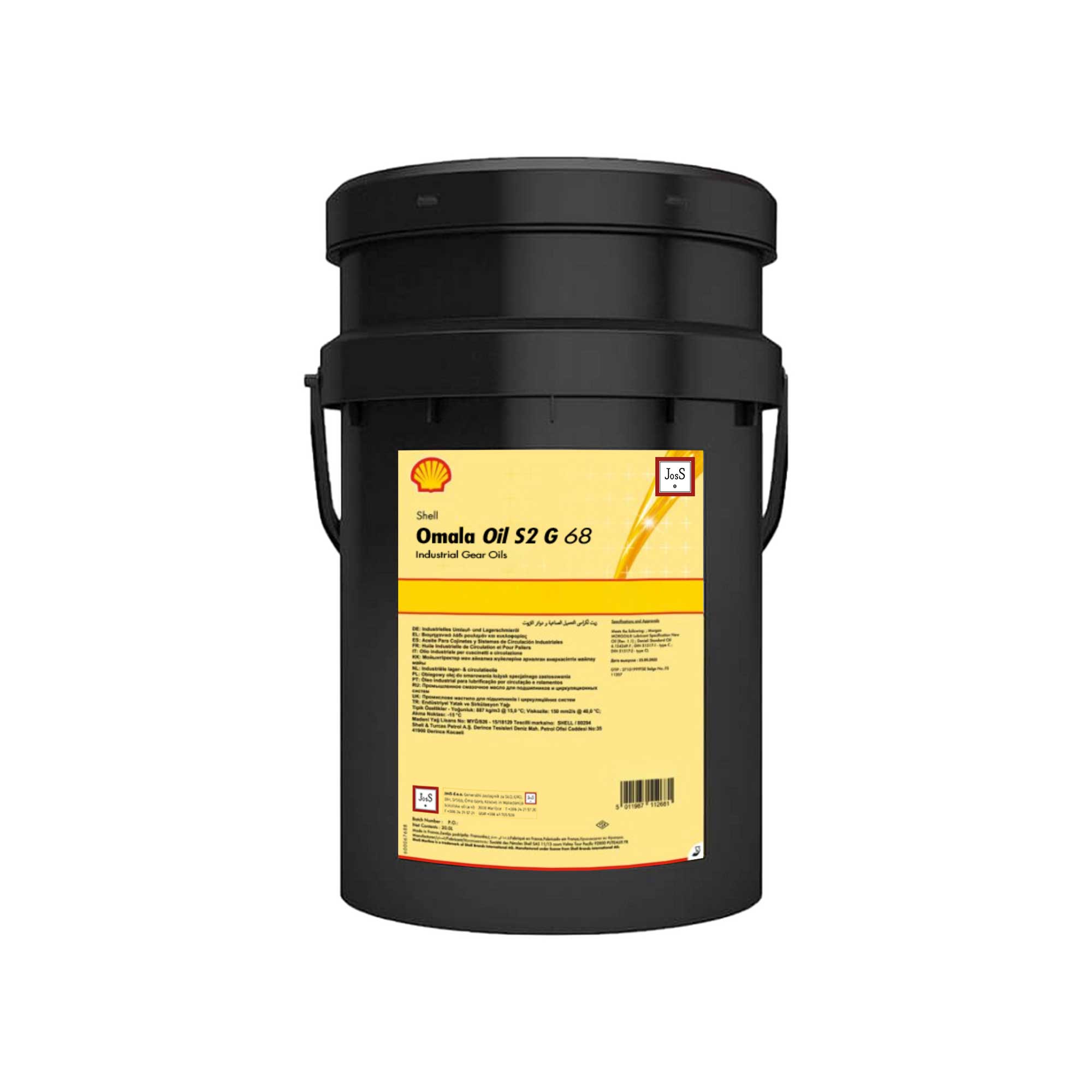

Shell Omala S2 G 68
Shell Omala S2 G 68 is a high-quality industrial gear oil designed for enclosed gear systems, offering superior load-carrying performance, corrosion protection, and thermal stability under extreme pressure conditions.
Shell Omala S2 G 68
( Previously named: Shell Omala Oils )
Extreme-pressure mineral oil for enclosed industrial gears and bearings
-
Formulated with sulphur-phosphorus EP additive system
-
Excellent protection against gear tooth and bearing wear
-
Maintains oil integrity at bulk temperatures up to 100 °C
-
High oxidation and thermal stability for long oil life
-
Protects steel surfaces even in the presence of water and solid contamination
-
Strong demulsibility allows easy drainage of excess water from lubrication systems
-
Not suitable for use with filters finer than 10 microns
-
Recommended for spur and helical steel gears in enclosed gearboxes
-
Suitable for use in splash-lubricated and circulating systems
-
Not recommended for highly loaded worm drives (use Omala S4 WE or Omala S1 W instead)
Global Product Code: 001D7834
Application:
Shell Omala S2 G 68 is an industrial gear oil developed for enclosed gear systems, particularly steel spur and helical gears operating under heavy loads. It is also suitable for splash-lubricated and circulating systems where high-performance EP lubrication is required. It is not recommended for highly loaded worm drives or filtration systems below 10 microns.
Performance Features & Benefits:
- Extreme Pressure Protection: EP additives help prevent gear tooth scuffing and bearing wear under high-load conditions.
- Long Oil Life: Formulated to resist thermal and chemical breakdown, enabling long service life even at oil temperatures up to 100 °C.
- Corrosion Resistance: Protects steel components from rust and degradation even in wet or dirty environments.
- Efficient Water Separation: Ensures efficient drainage of water, reducing surface fatigue and corrosion.
Main Application Areas:
- Enclosed steel gearboxes (spur and helical)
- Industrial circulating systems
- Splash-lubricated gear and bearing systems
Specifications & Approvals:
- Fives Cincinnati P-63
- AGMA EP 9005-E02
- ISO 12925-1 Type CKD
- DIN 51517 Part 3 CLP
Environmental & Safety Information:
- Unlikely to pose significant hazards under recommended use.
- Use impervious gloves when handling used oil; wash skin with soap and water after contact.
- Do not discharge into drains, water, or soil. Dispose of used oil at an authorized collection point.
- Safety Data Sheet (SDS) available via inquiry
Technical Specifications:
| Property | Typical Value | Method |
|---|---|---|
| ISO Viscosity Grade | 68 | ISO 3448 |
| Kinematic Viscosity @ 40°C | 68 mm²/s | ISO 3104 |
| Kinematic Viscosity @ 100°C | 8.7 mm²/s | ISO 3104 |
| Viscosity Index | 100 | ISO 2909 |
| Density @ 15°C | 887 kg/m³ | ISO 12185 |
| Flash Point (COC) | 236 °C | ISO 2592 |
| Pour Point | -24 °C | ISO 3016 |
