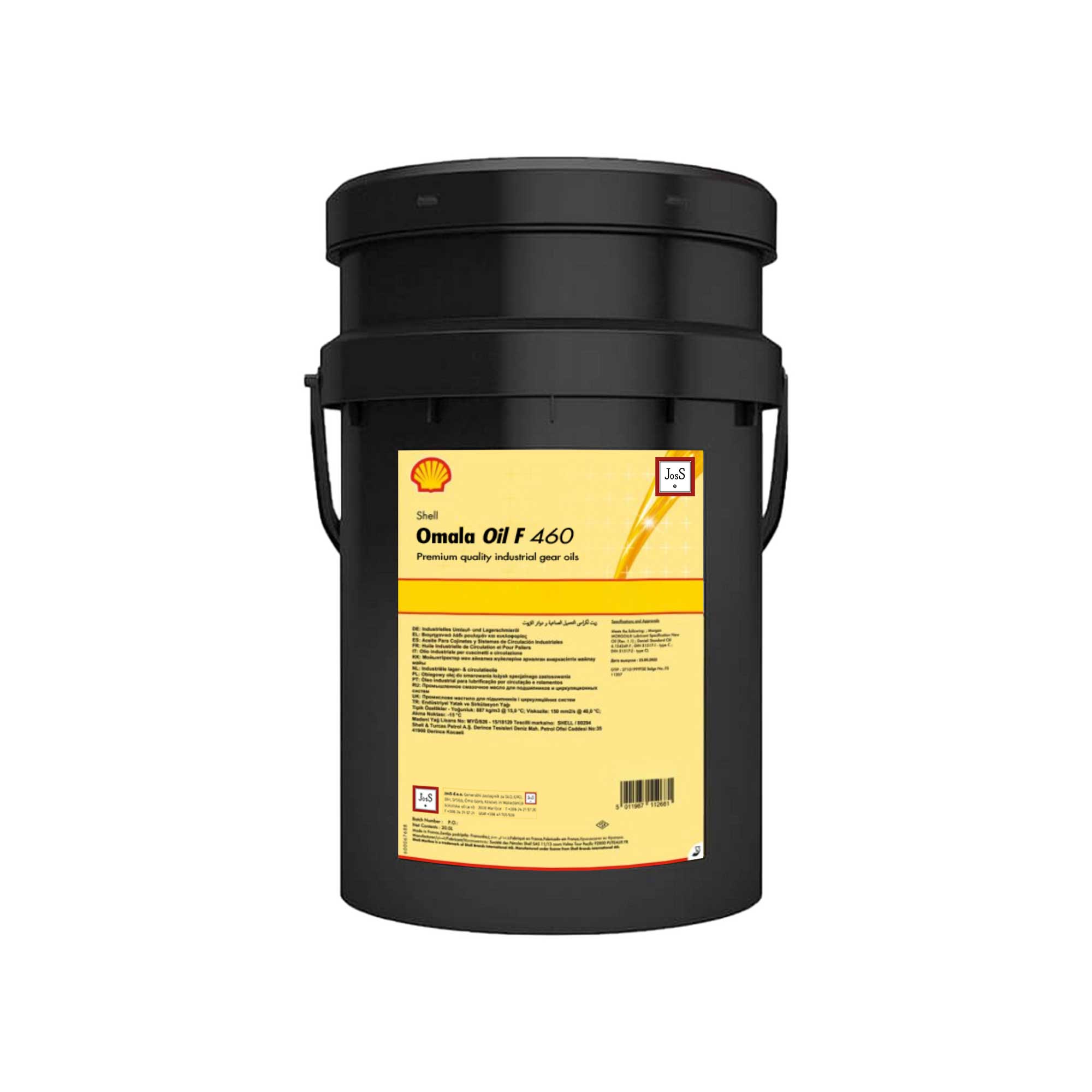

Shell Omala Oil F 460
Shell Omala Oil F 460 is a very high-performance, lead-free industrial gear oil engineered to deliver exceptional load-carrying capability, anti-wear protection, and long service life for heavily loaded steel gear transmissions and industrial systems.
Shell Omala Oil F 460
Extreme-pressure gear oil for heavy-duty gearboxes and industrial gear drives
-
Advanced EP additives provide superior gear tooth and bearing wear protection
-
Performs significantly better than leaded gear oils under high-load conditions
-
Outstanding oxidation and thermal stability, with oil life up to 10,000 hours at 80 °C
-
Passes micro-pitting FVA-54/II test at load stage 10 (90 °C)
-
Achieves >12 failure load stage in FZG A/8.3/90 and A/16.6/90 tests
-
Excellent corrosion inhibition for both steel and bronze components
-
Excellent water separation and easy drainage from lubrication systems
-
Lead-free formulation for improved safety and environmental responsibility
-
Not suitable for systems using filters finer than 10 microns
-
Compatible with seals, internal gearbox paints, and commonly used industrial materials
Global Product Code: 001A0931
Application:
Shell Omala Oil F 460 is a premium-quality, lead-free industrial gear oil formulated for high-performance lubrication of heavy-duty gear systems. It is ideal for steel gear transmissions, bearings, and splash or circulation-lubricated gearboxes operating under high loads and elevated temperatures. This product is not suitable for use in automotive hypoid gears or systems with fine filtration (<10 microns).
Performance Features & Benefits:
- Superior Load-Carrying Capacity: Performs better than leaded oils in EP testing, with gear and bearing wear significantly reduced under extreme pressure conditions.
- Micro-Pitting Resistance: Passes FVA-54/II grey staining test at load stage 10 (90 °C), preventing early surface fatigue.
- Thermal & Oxidative Stability: Provides extended oil life and sludge resistance at operating temperatures up to 100 °C.
- Corrosion Protection: Effectively protects both steel and bronze components—even in water-contaminated environments.
- Water Shedding Properties: Excellent demulsibility allows easy removal of water from systems, reducing wear and corrosion risks.
- Health-Conscious & Lead-Free: Safer for operators and more environmentally responsible than traditional leaded gear oils.
Main Application Areas:
- Heavily loaded steel gear transmissions
- Industrial gear drives requiring full EP performance
- Bearings in circulating and splash-lubricated systems
Specifications & Approvals:
- FZG Gear Machine A/8.3/90 and A/16.6/90: Load Stage >12
- Four Ball EP Test (Initial seizure load): 250 kg
- Timken OK Load: 60 lbs
- FVA-54/II Micro-Pitting Test: Load stage 10 at 90 °C
- Flender Foam Test
- Oxidation stability: ≥10,000 hrs or 2 years at 80 °C
Environmental & Safety Information:
- Guidance available via Safety Data Sheet (SDS).
- Use gloves and proper PPE when handling used oil; wash skin thoroughly after contact.
- Do not release into drains, water, or soil. Return used oil to authorized disposal points.
- Safety Data Sheet (SDS) available via inquiry
Technical Specifications:
| Property | Typical Value | Method |
|---|---|---|
| ISO Viscosity Grade | 460 | ISO 3448 |
| Kinematic Viscosity @ 40°C | 460 cSt | IP 71 |
| Kinematic Viscosity @ 100°C | 30.8 cSt | IP 71 |
| Viscosity Index | 97 | IP 226 |
| Density @ 15°C | 0.904 kg/l | IP 365 |
| Flash Point (PMCC) | 204 °C | IP 34 |
| Pour Point | -9 °C | IP 15 |
