Shell Corena S4 R 46 is an advanced synthetic rotary compressor oil designed for long-life lubrication in vane and screw compressors under severe operating conditions, delivering up to 12,000-hour oil drain intervals, outstanding cleanliness, and superior wear protection.
  1. Home
  2. JosS Product Catalogue
  3. SHELL LUBRICANTS
  4. Industrial
  5. Compressor and Vacuum Pump Oils
  6. Shell Corena S4 R 46

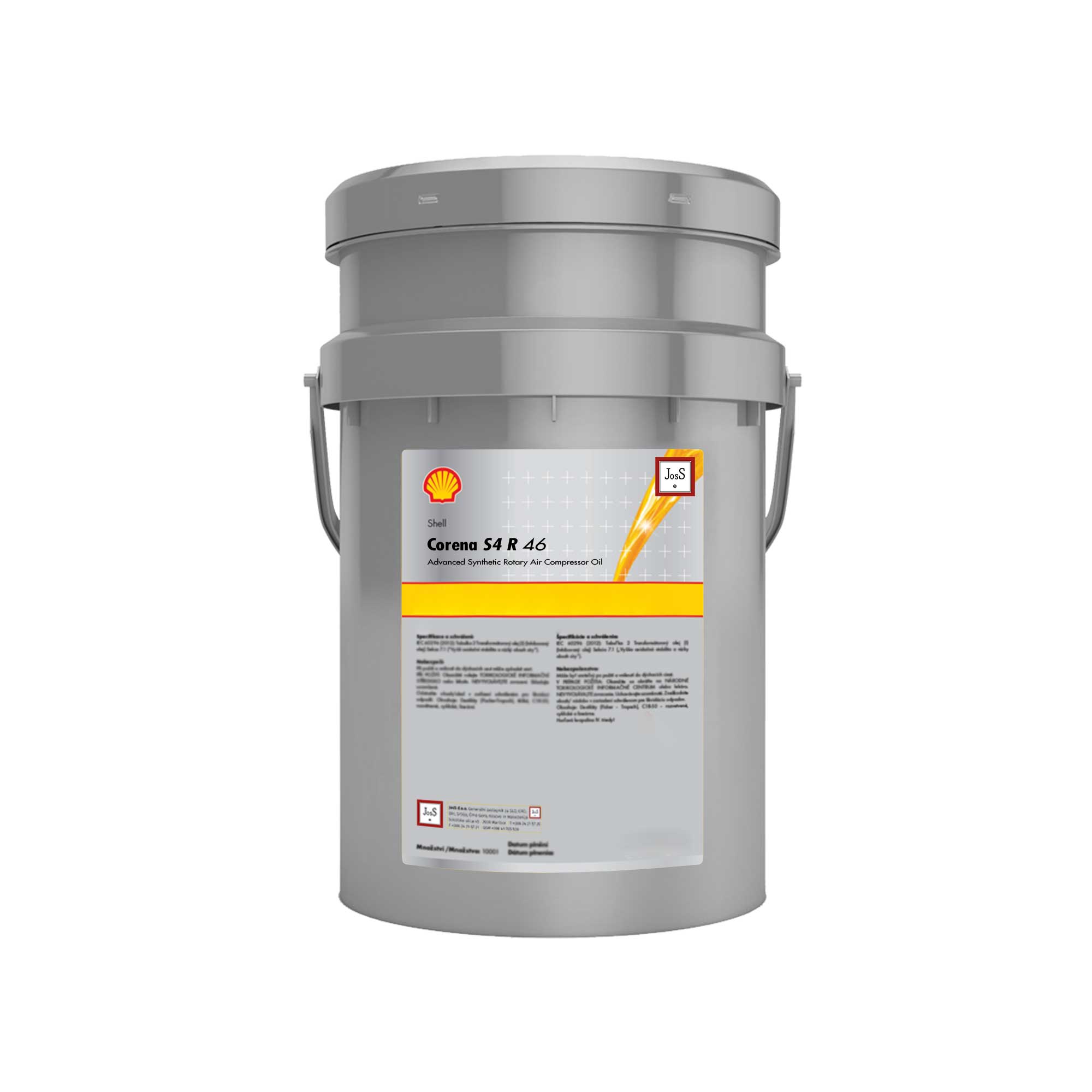

Shell Corena S4 R 46

Shell Corena S4 R 46 is an advanced synthetic rotary compressor oil designed for long-life lubrication in vane and screw compressors under severe operating conditions, delivering up to 12,000-hour oil drain intervals, outstanding cleanliness, and superior wear protection.

Category:

Shell Corena S4 R 46

Premium synthetic oil for rotary sliding vane and screw air compressors

  • Supports extended oil drain intervals of up to 12,000 hours (OEM and condition dependent)

  • Excellent resistance to thermal and chemical degradation above 100 °C

  • Helps minimize deposits in vanes, rotors, and separator/coalescer systems

  • Ashless anti-wear additives protect critical metal components

  • Ensures rapid air release and low foaming under cyclic operation

  • Low volatility minimizes oil top-up and improves air quality

  • Excellent water separation for reliable performance in humid conditions

  • Suitable also for synthetic R&O or bearing/circulating oil applications (ISO VG 32–68)

Global Product Code: 001D7786



Application:

Shell Corena S4 R 46 is a premium synthetic air compressor oil formulated for use in rotary sliding vane and screw compressors operating under severe conditions. It is suitable for oil-flooded or oil-injected single and two-stage compressors, and also performs as a synthetic R&O or bearing and circulating oil in systems requiring ISO VG 32–68 performance. Ideal for use in high-temperature and high-humidity environments, it supports long oil life while maintaining system cleanliness and efficiency.

Performance Features & Benefits:

  • Extended Drain Intervals: Enables oil change intervals up to 10,000–12,000 hours depending on OEM and environmental conditions.
  • High-Temperature Stability: Withstands operation at discharge temperatures exceeding 100 °C without degrading.
  • Cleaner Operation: Helps prevent deposit build-up in screw rotors, vane slots, oil/air separators, and coalescers.
  • Superior Wear Protection: Ashless formulation protects bearings and gears from wear and corrosion.
  • Low Oil Consumption: Low volatility minimizes evaporation losses and reduces oil carryover.
  • Excellent Demulsibility: Efficiently separates water to prevent emulsions and ensure clean condensate drainage.

Main Application Areas:

  • Rotary screw compressors (single or two-stage)
  • Rotary sliding vane compressors (oil-injected/flooded)
  • Severe service environments with high ambient temperature and humidity
  • Applications requiring synthetic R&O or bearing and circulating oils (ISO VG 32–68)

Specifications & Approvals:

  • ISO 6743-3 L-DAJ

Environmental & Safety Information:

  • Use impervious gloves and wash exposed skin immediately after contact with oil.
  • Do not release into soil, drains, or watercourses. Dispose of used oil via approved collection systems.
  • Safety Data Sheet (SDS) available via inquiry

Technical Specifications:

Property Typical Value Method
ISO Viscosity Grade 46 ISO 3448
Kinematic Viscosity @ 40 °C 46 mm²/s ASTM D445
Kinematic Viscosity @ 100 °C 7.5 mm²/s ASTM D445
Viscosity Index 135 ISO 2909
Density @ 15 °C 843 kg/m³ ASTM D1298
Flash Point (COC) 230 °C ASTM D92
Pour Point -48 °C ASTM D97
Air Release @ 50 °C 2 min ASTM D3427
FZG Load Stage Failure 12 CEC-L-07-A-95
Water Separability @ 54 °C 10 min ASTM D1401
