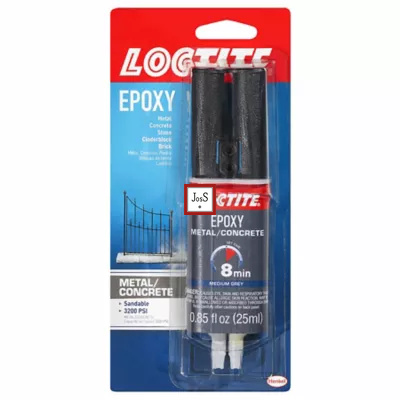

Loctite Epoxy Metal & Concrete
LOCTITE® Epoxy Metal & Concrete is a two-part, industrial-grade epoxy adhesive designed for high-strength bonding, repairing, and rebuilding of metal, concrete, stone, and other rigid materials.
Loctite Epoxy Metal & Concrete
Heavy-duty epoxy adhesive for structural bonding and repairs
-
Formulated for bonding and repairing metals, concrete, brick, stone, and rigid plastics
-
High compressive and shear strength for structural repairs and load-bearing joints
-
Gap-filling capability ideal for rebuilding worn surfaces or filling voids
-
Resistant to impact, vibration, water, and many chemicals
-
Workable for up to 5 minutes, with full cure in 24 hours
-
Can be sanded, drilled, and machined after curing
-
Suitable for indoor and outdoor applications, including harsh environments
Application:
LOCTITE® Epoxy Metal & Concrete is a two-component epoxy system designed for structural repairs and bonding of rigid substrates. It offers exceptional strength and durability, making it ideal for heavy-duty applications where traditional adhesives are insufficient.
Performance Features & Benefits:
- Industrial-Strength Bonding: Provides high compressive and shear strength for structural repairs.
- Versatile Substrate Compatibility: Bonds metals, concrete, stone, brick, and rigid plastics.
- Gap-Filling & Rebuilding: Fills voids and can rebuild worn or damaged surfaces.
- Durable & Resistant: Withstands impact, vibration, and chemical exposure.
- Post-Cure Workability: Can be sanded, drilled, and machined after curing.
Main Application Areas:
- Repairing cracks and breaks in concrete or stone
- Bonding metal parts or components
- Industrial maintenance, rebuilding, and restoration
Specifications & Approvals:
- Mix Ratio: 1:1 (resin to hardener)
- Complies with ASTM D638 for tensile strength
- VOC-compliant
Environmental & Safety Information:
- Work in well-ventilated areas; avoid skin contact with uncured epoxy.
- Remove uncured adhesive with acetone or isopropyl alcohol.
- Safety Data Sheet (SDS) available via inquiry
Technical Specifications:
| Property | Typical Value | Test Method |
|---|---|---|
| Base | Epoxy resin and hardener | — |
| Appearance | Gray | — |
| Mix Ratio (Resin:Hardener) | 1:1 by volume | — |
| Working Time | 5 minutes | — |
| Full Cure | 24 hours | — |
| Tensile Strength | 3000 psi (20.7 MPa) | ASTM D638 |
| Compressive Strength | Up to 9000 psi (62 MPa) | ASTM D695 |
| Service Temperature Range | -20°F to 200°F (-29°C to 93°C) | — |
| Gap Fill | Up to 0.5 in (12.7 mm) | — |
| VOC Content | < 5% | EPA Method 24 |
